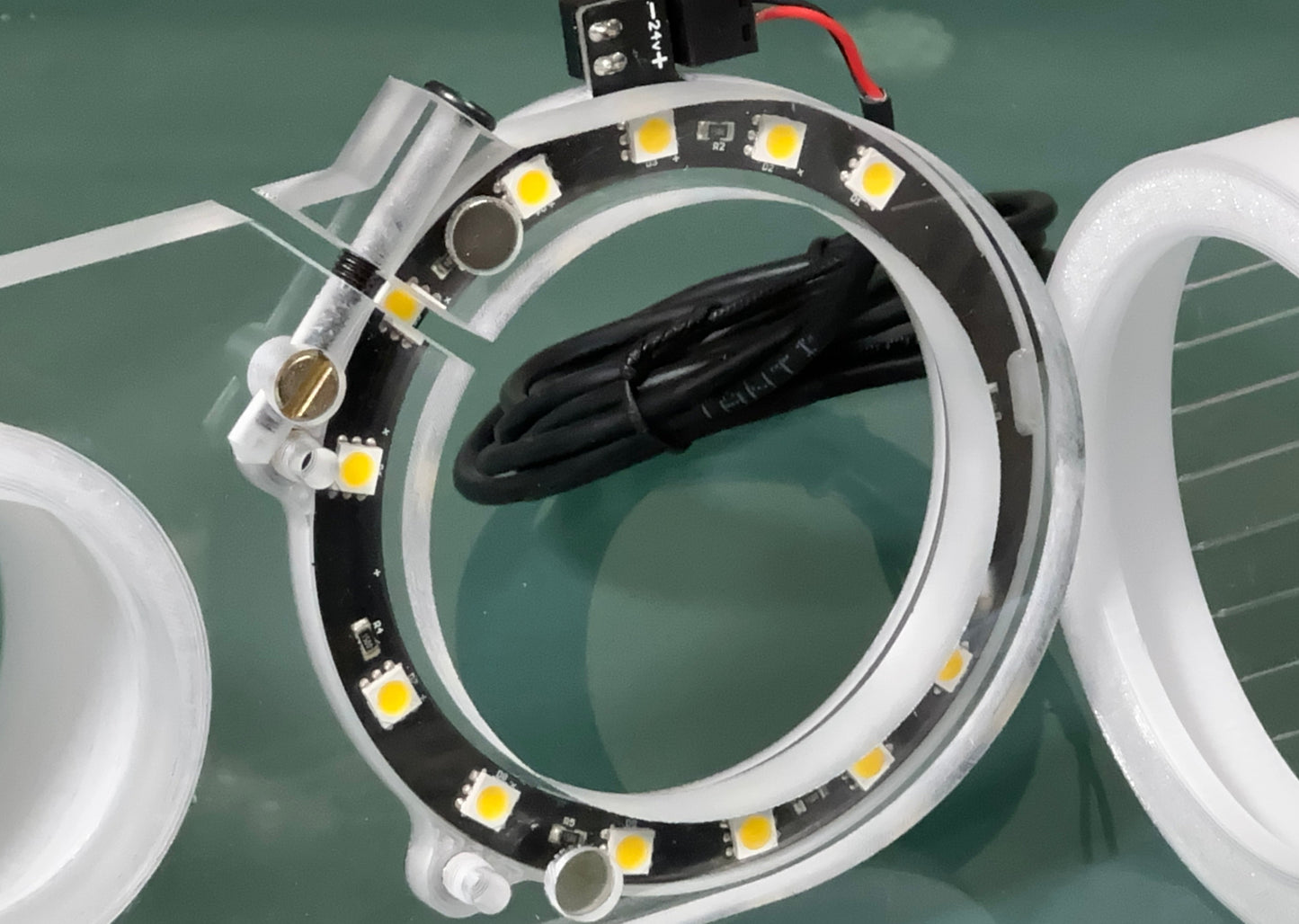

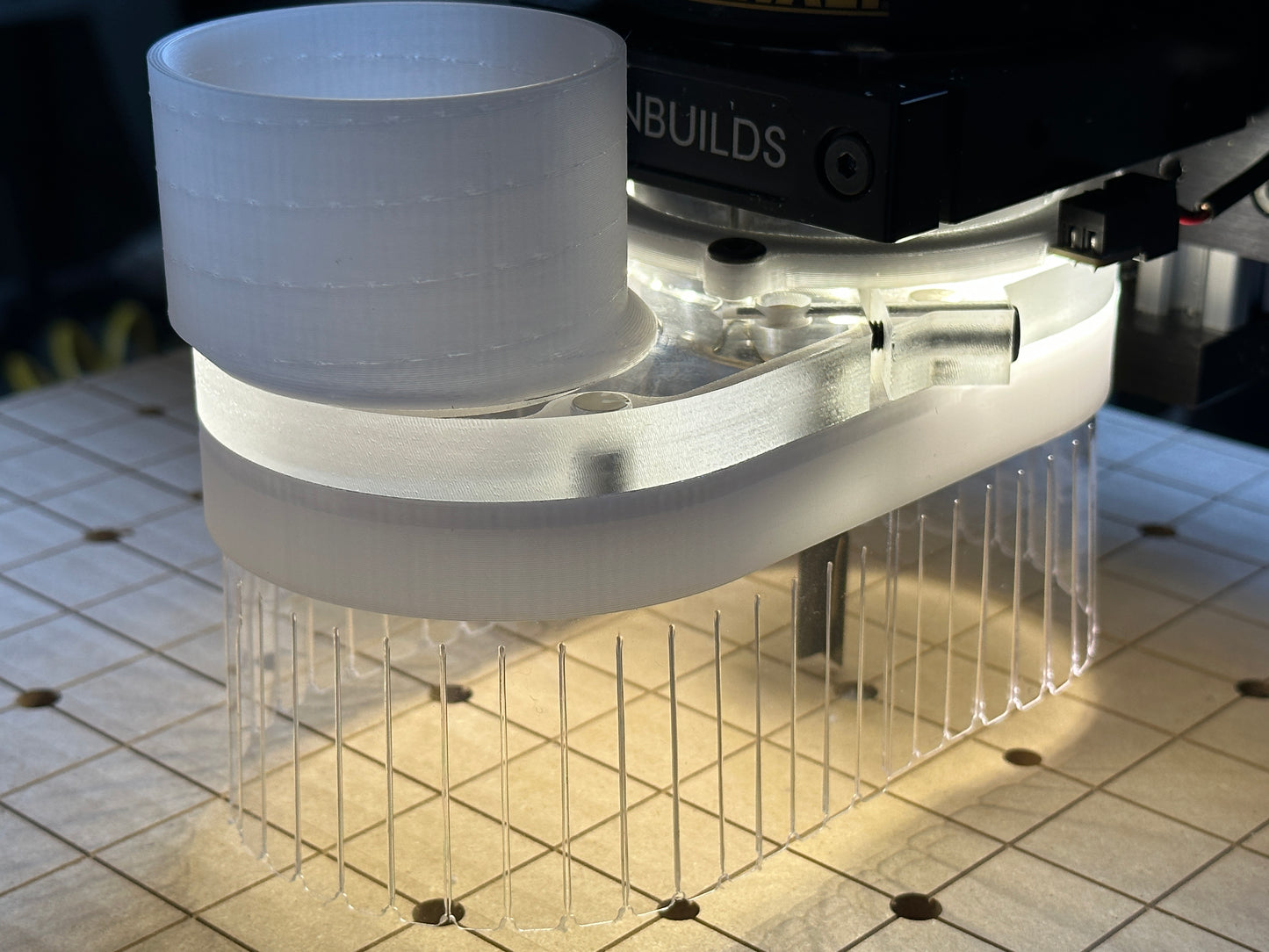

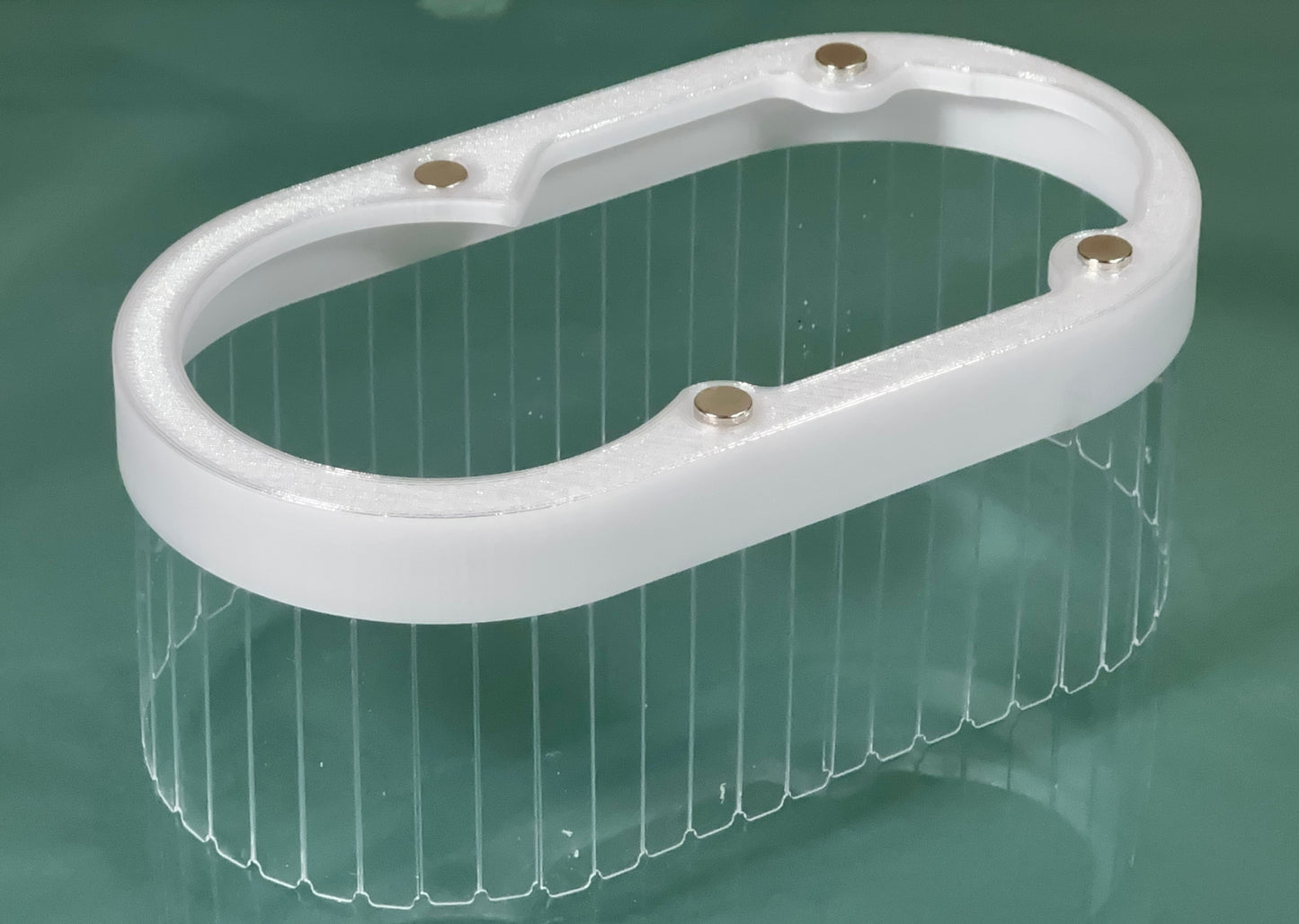

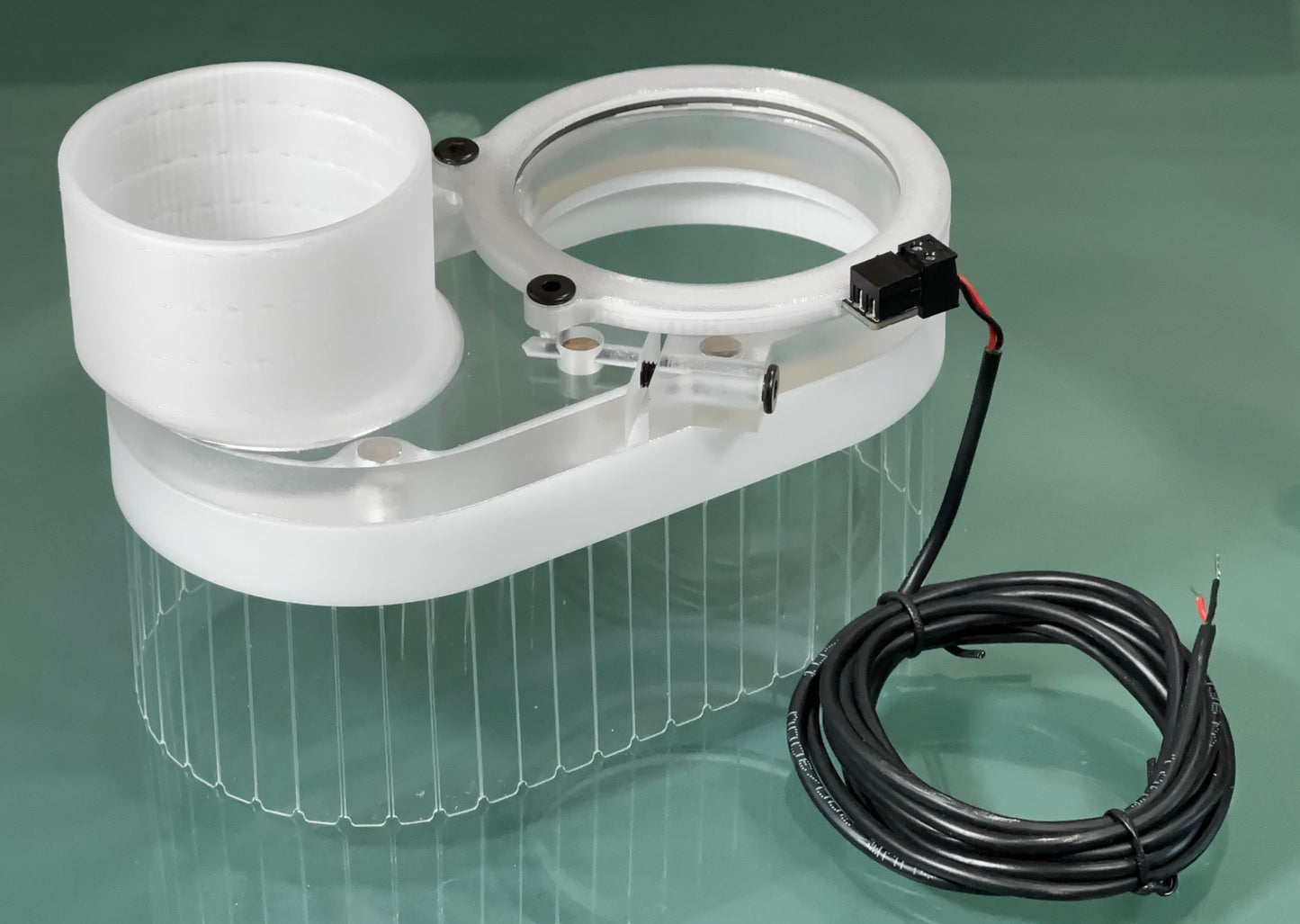

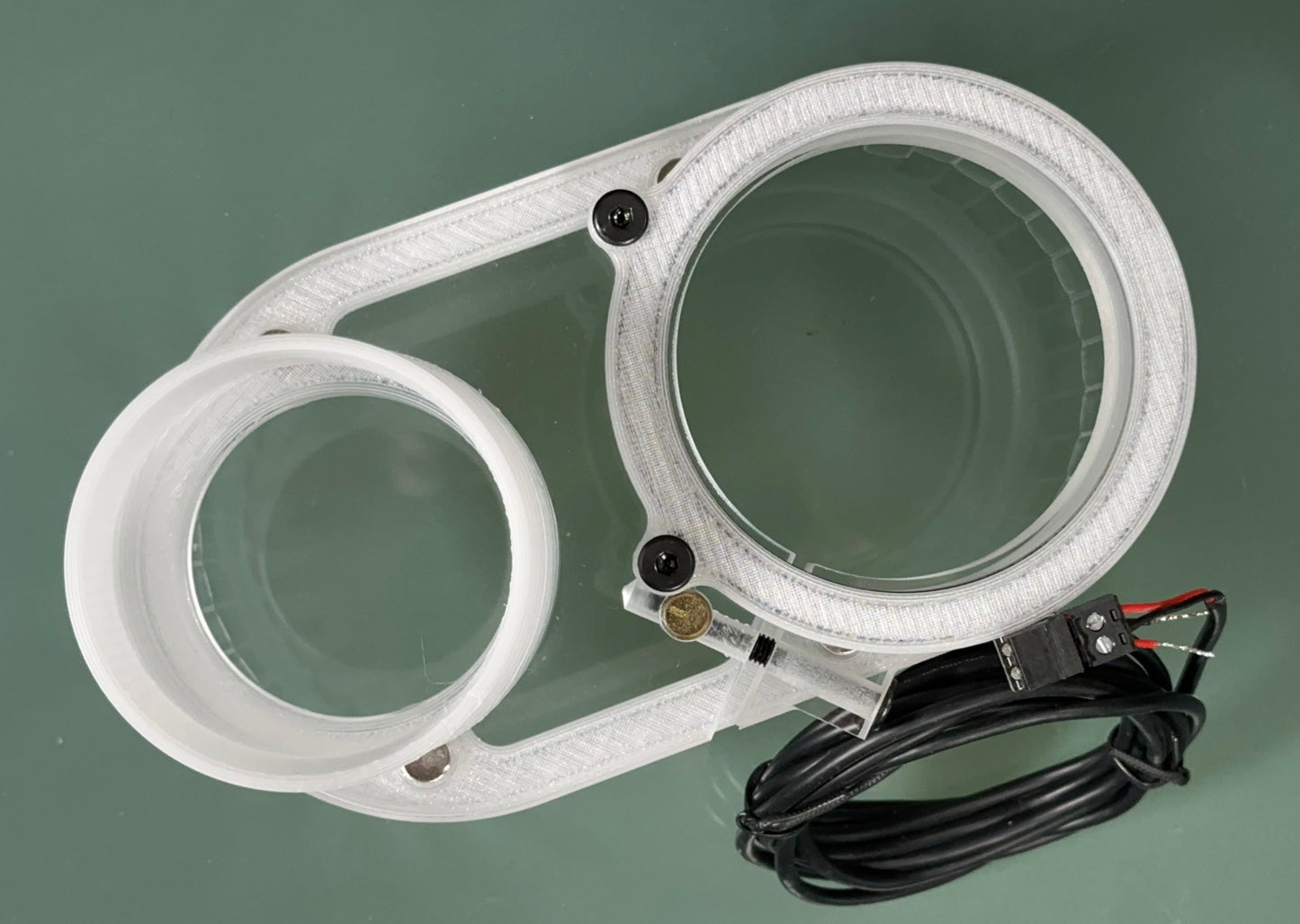

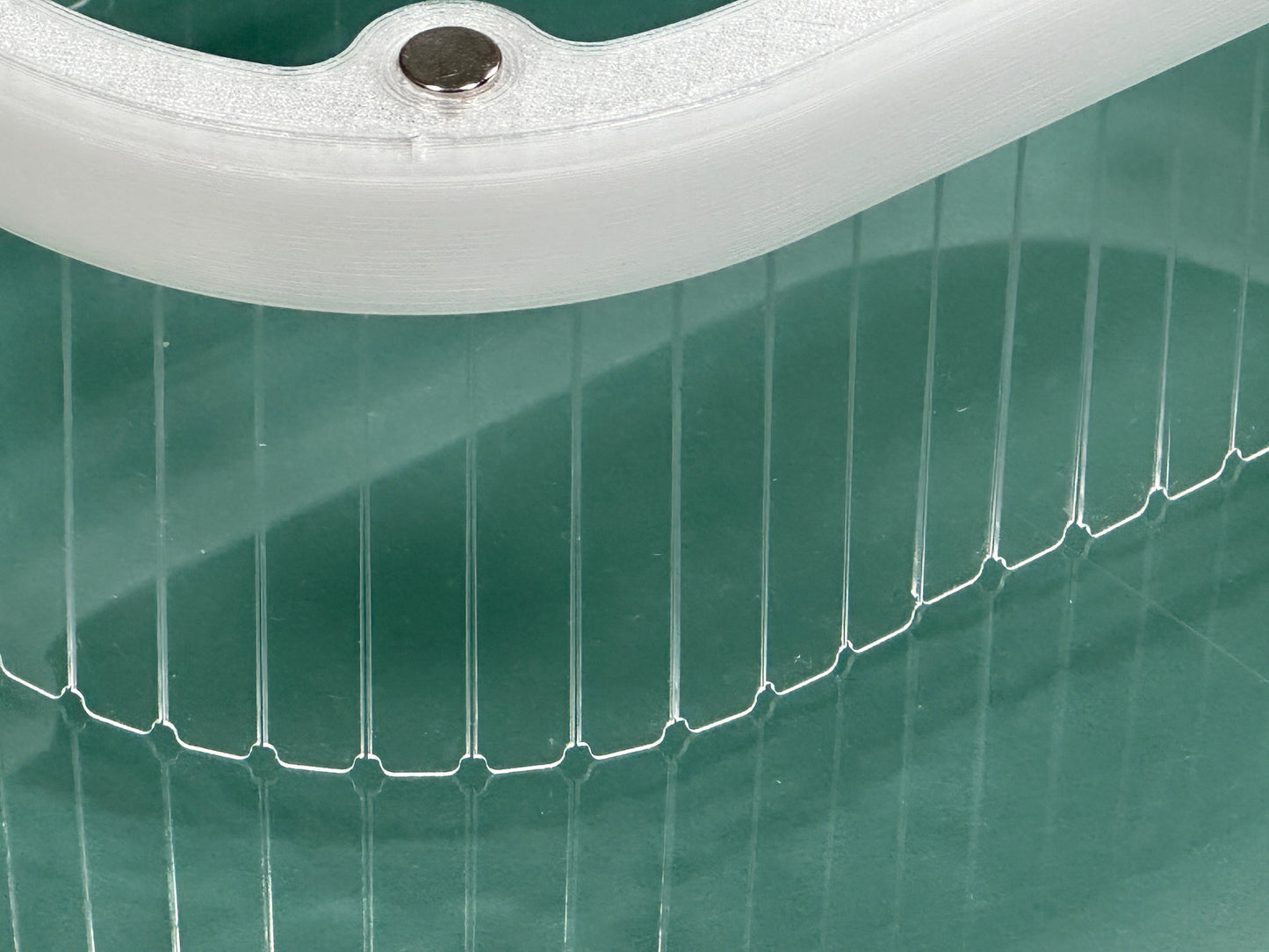

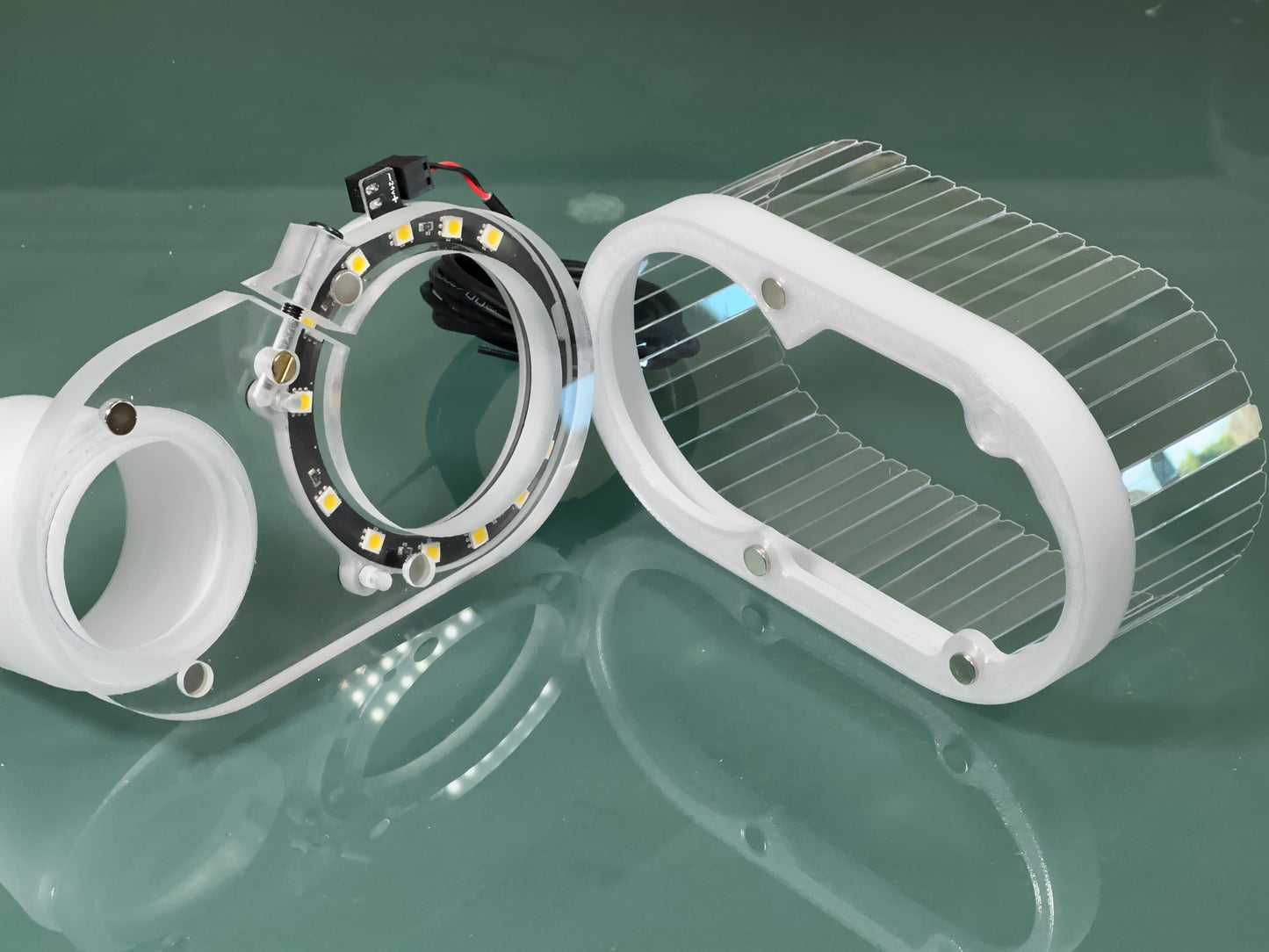

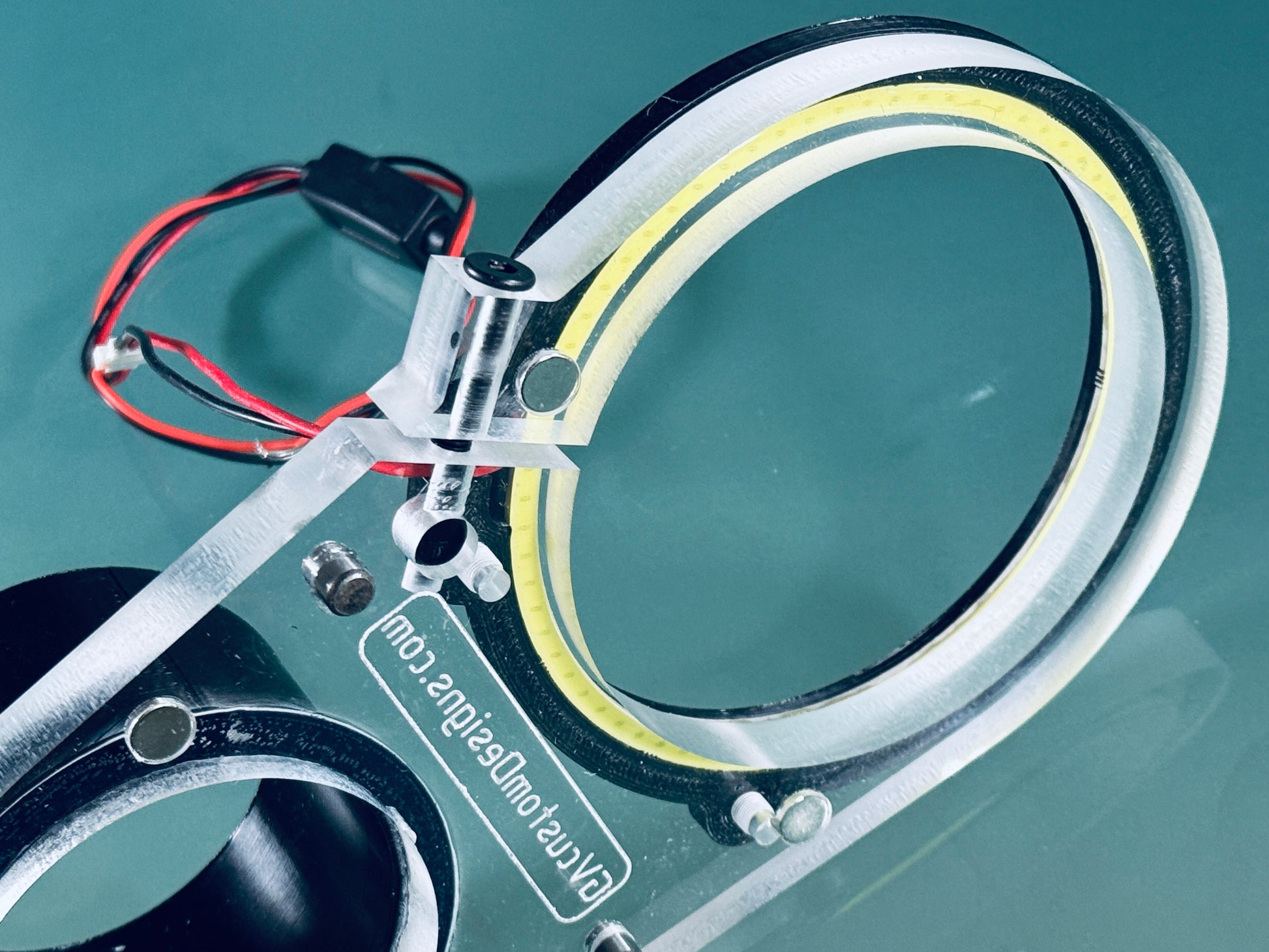

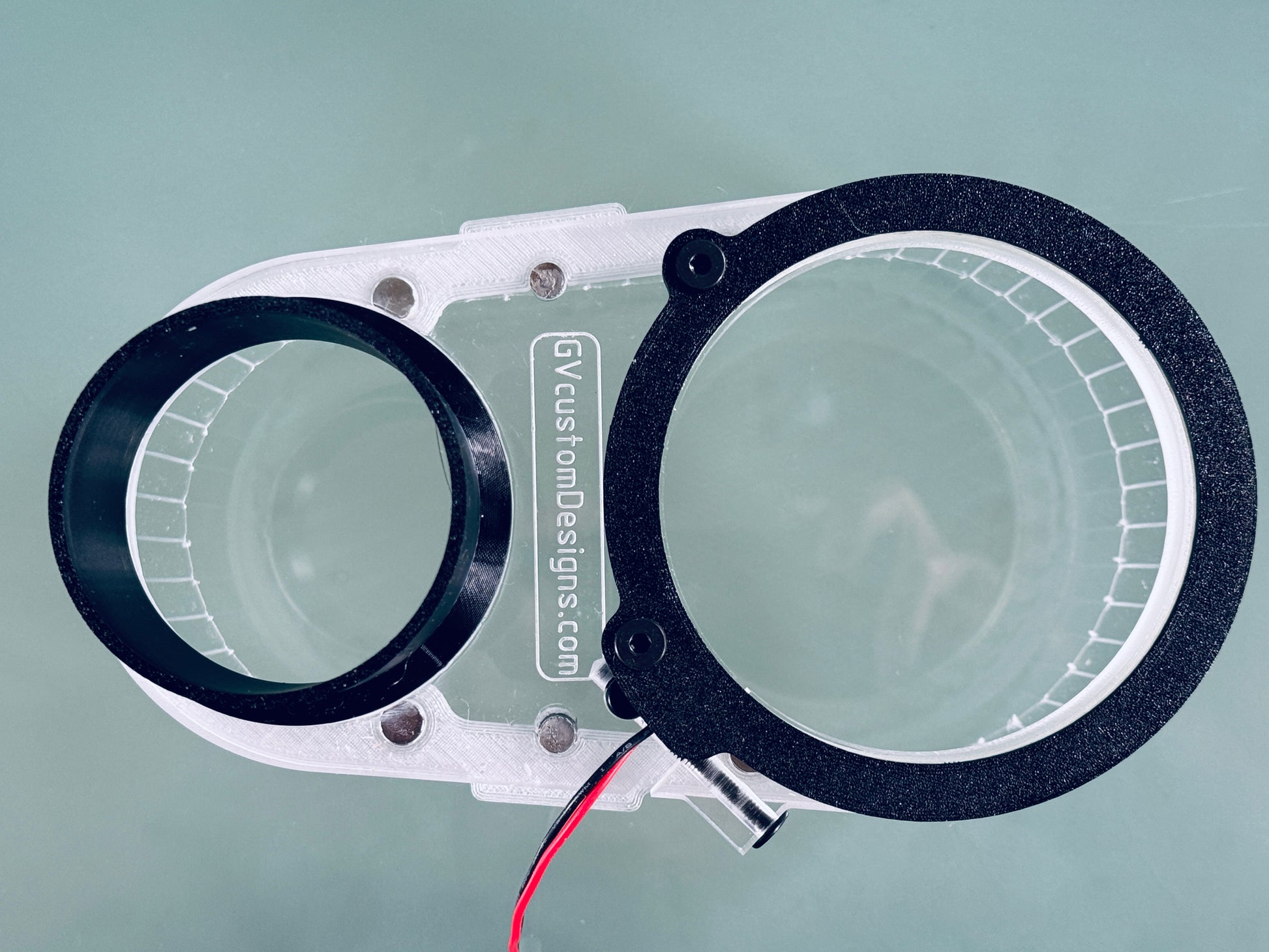

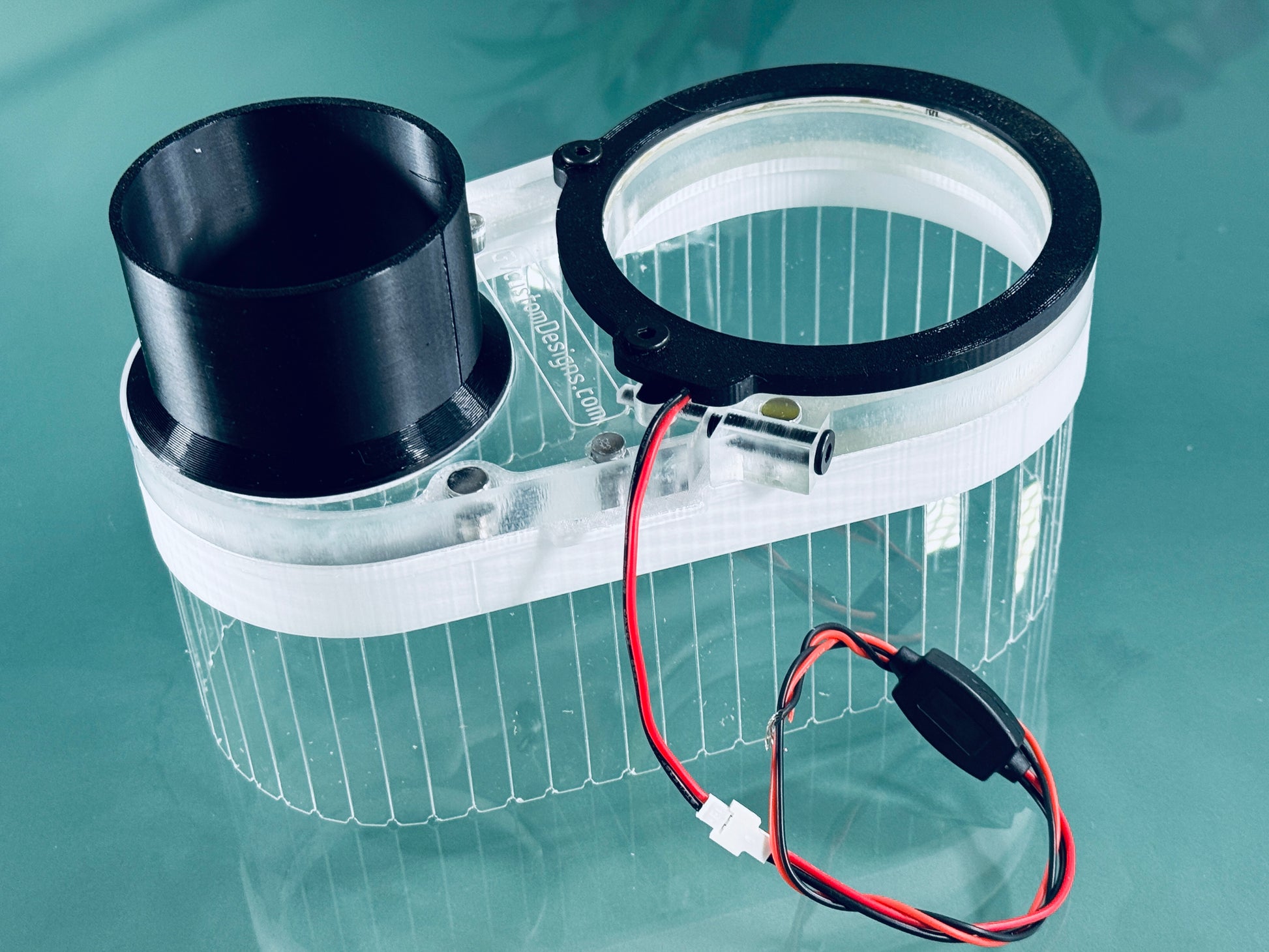

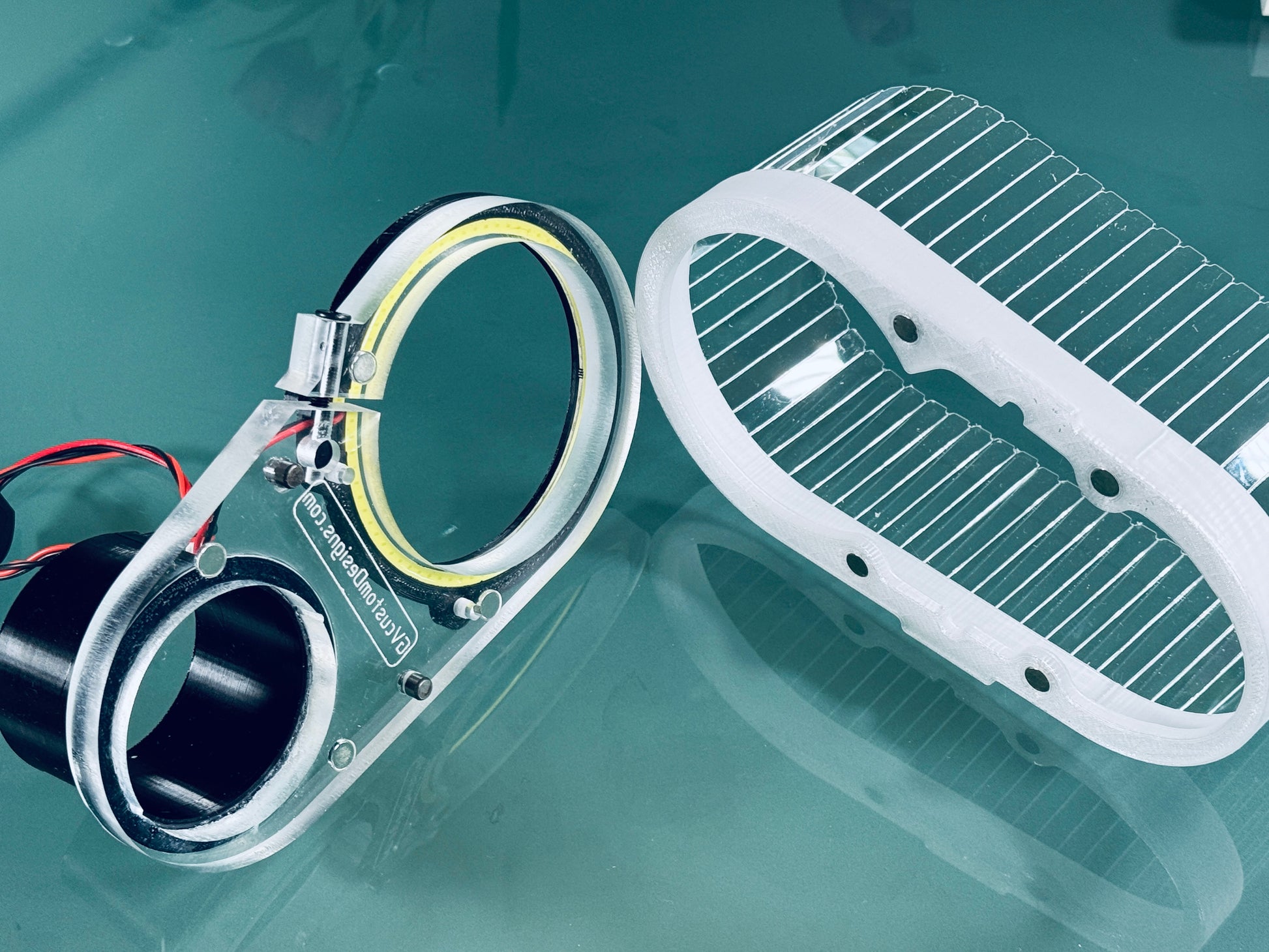

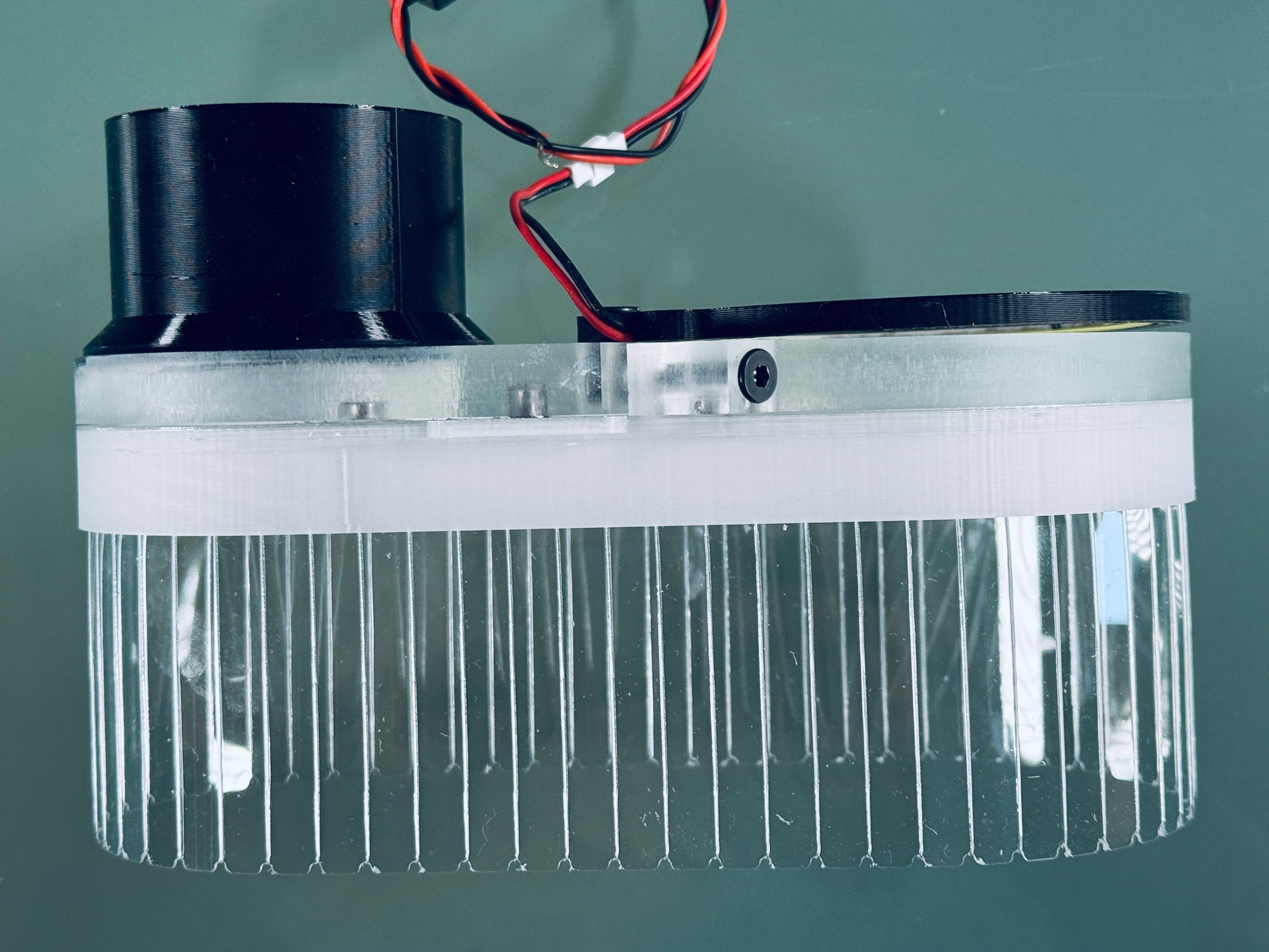

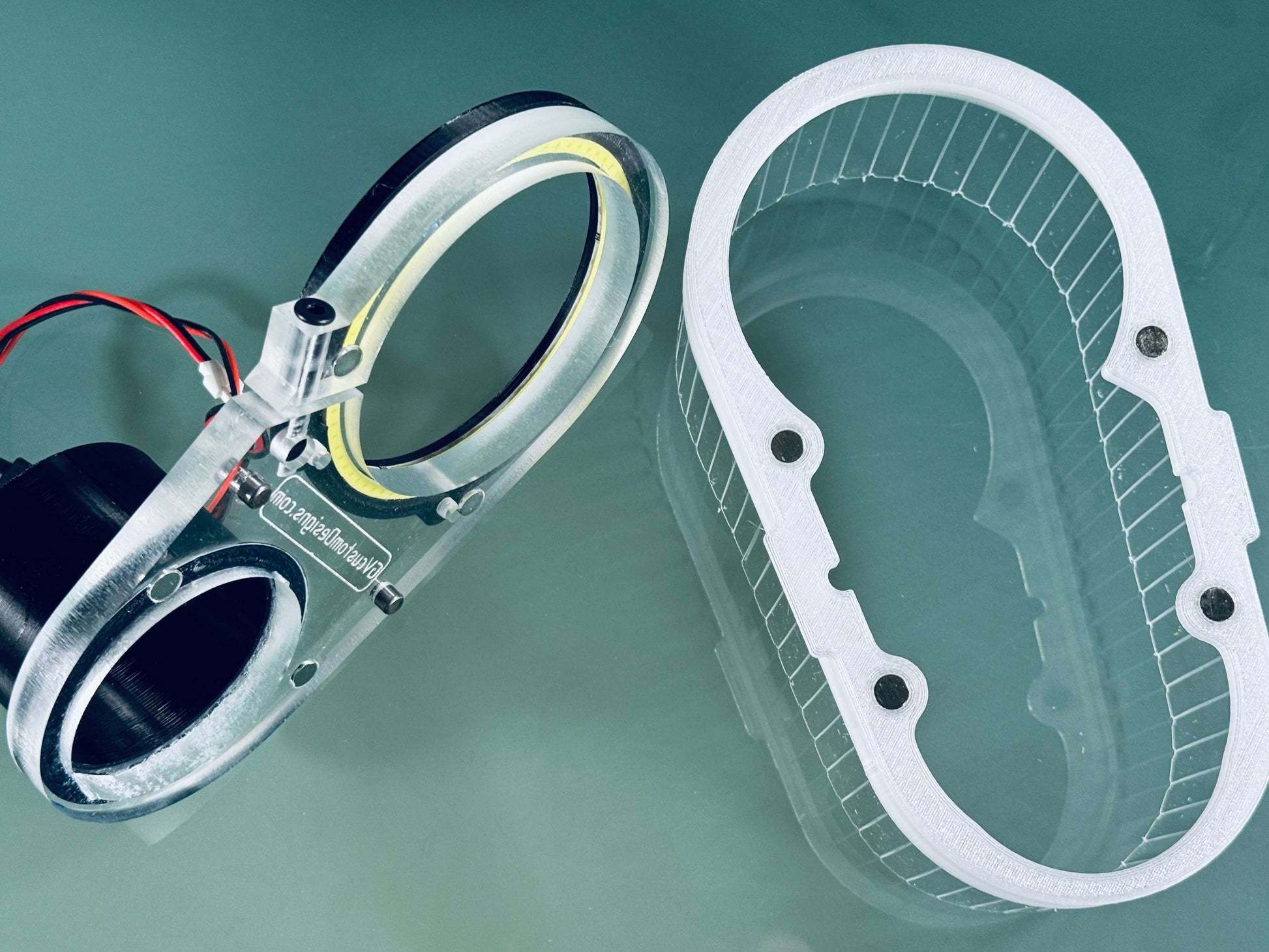

This is a dust boot system with LED light ring that illuminates directly over the work area. It's made out of 1/2" clear Plexiglass with a magnetic removable base that holds a transparent flexible screen that allows you to see what you'r cutting/engraving tool is doing. Magnetic base is easily removed for full access to tool install. Design to fit the router size selected and vacuum hose adapter. Distance from bottom of plexiglass plate to tips of screen is 64mm.
Requires a connection to a 24 volt power source (most CNC controller have a 24 volt output) or external 115AC to 24volts transformer (sold separate - $19.95)
Other sizes will be available soon, send message if you would like an update on availability.
Please note: This design will only work on CNC's equipped with routers. (not designed for CNC machines with spindles)
Router body diameters:
Makita - RT0701C - 65mm
RoutER- - 65mm
Dewalt - 611 - 69mm
Bosch - Colt - 71mm
