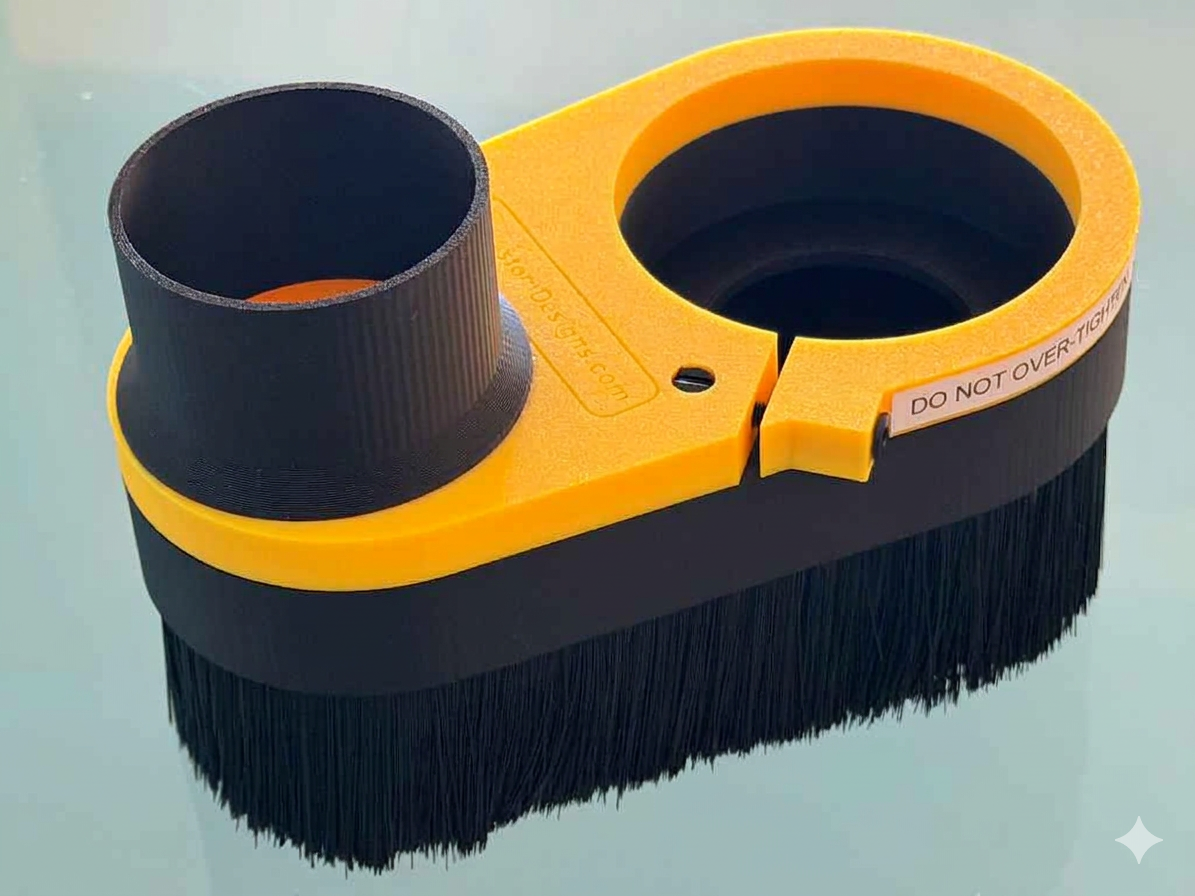

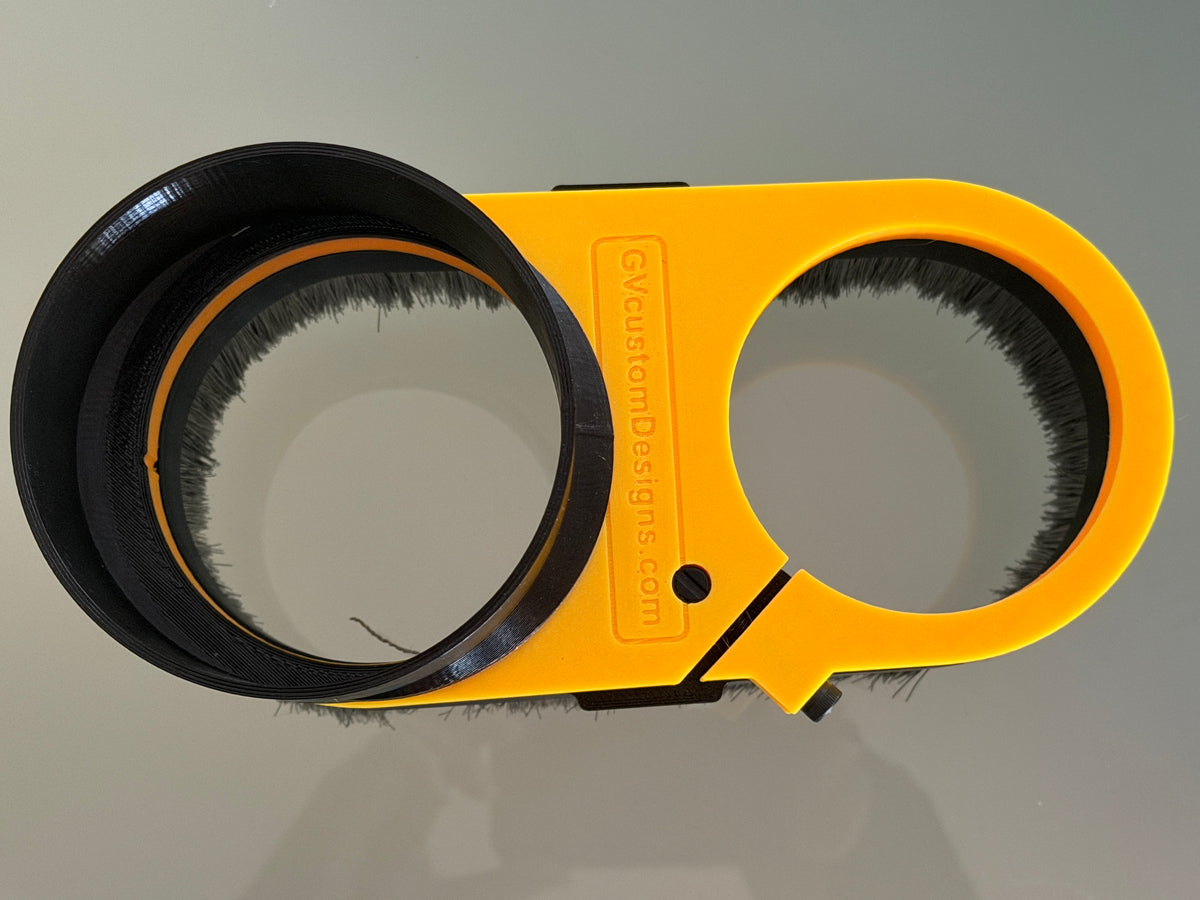

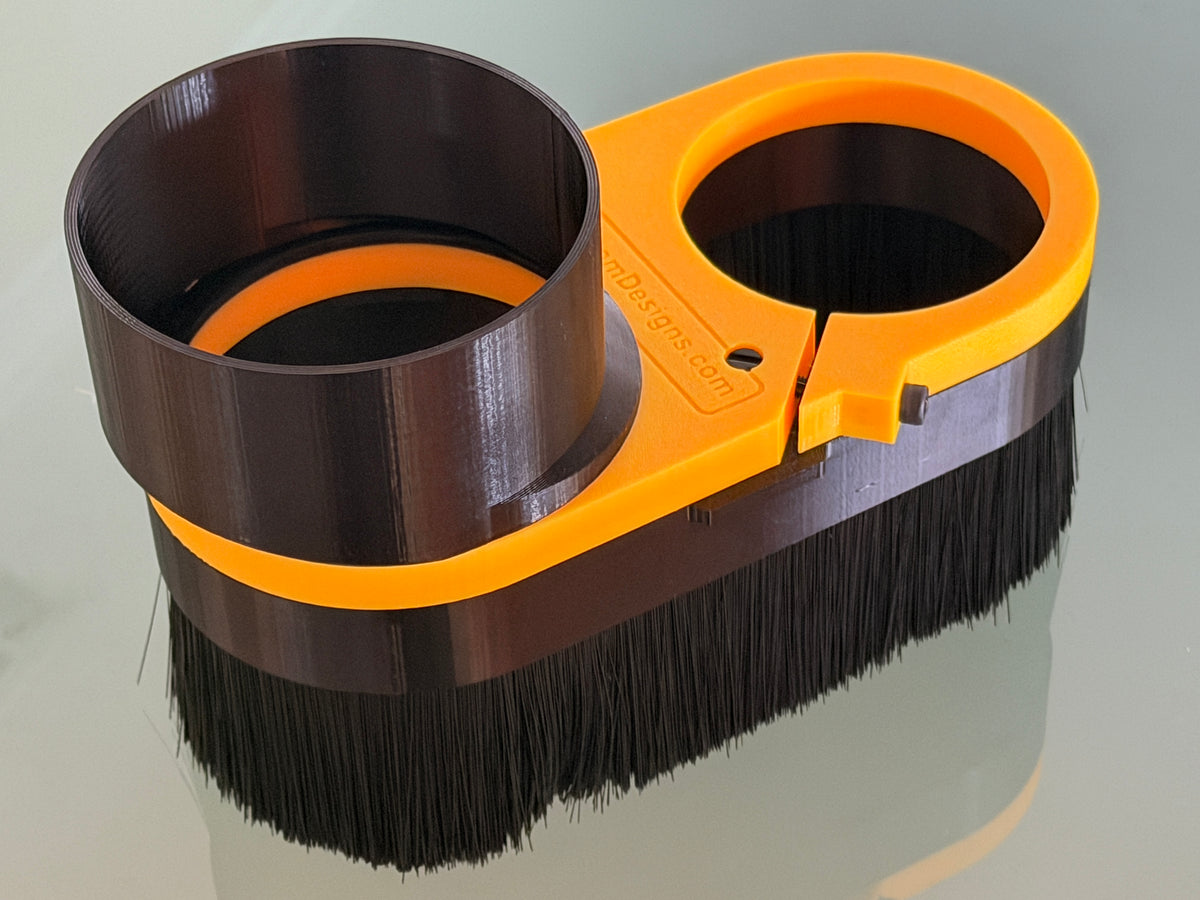

Universal Dust Shoe for CNC Milling Machine - Magnetic Split Brush - 2-1/2 or 4-inch Vacuum Port

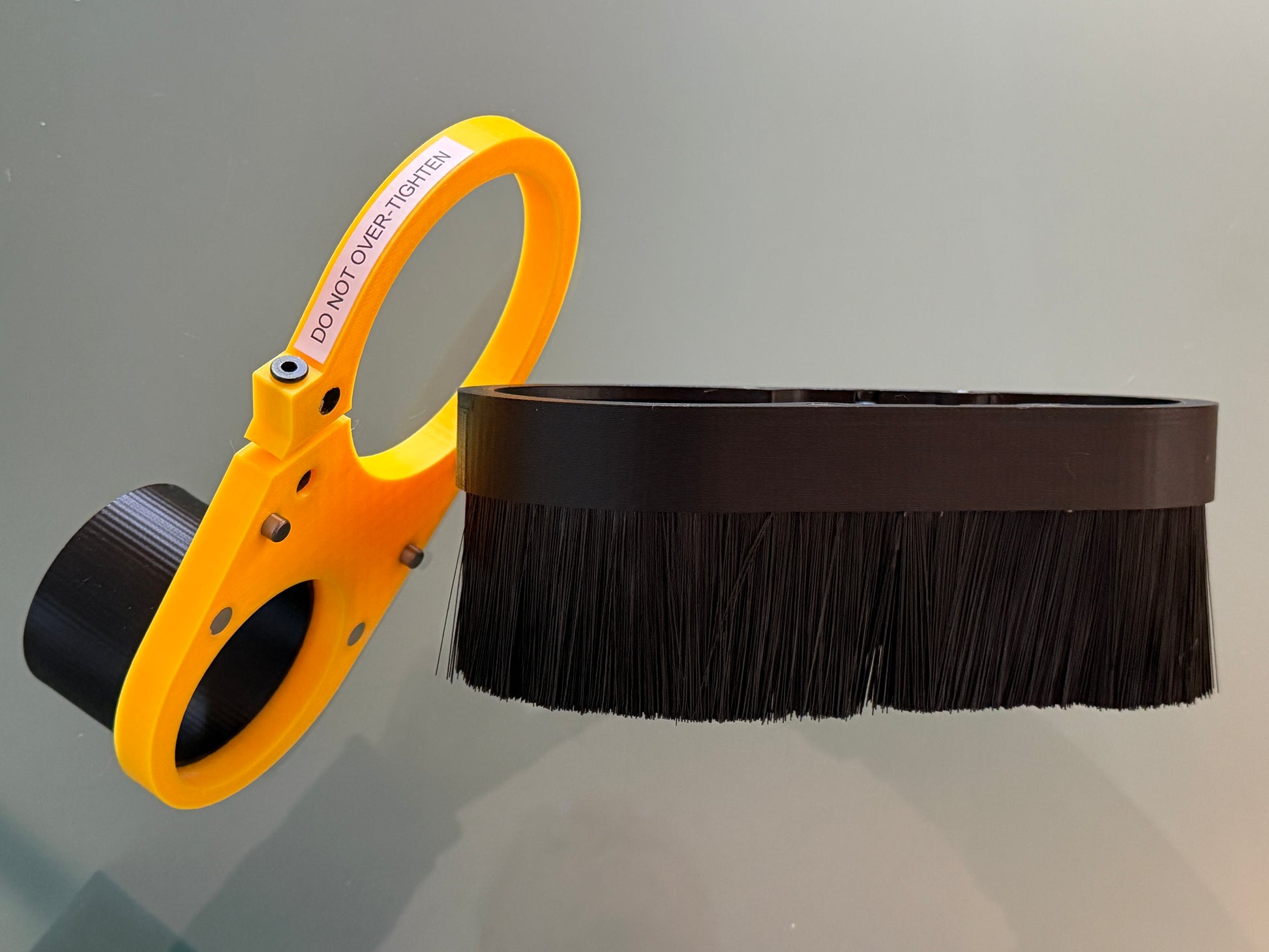

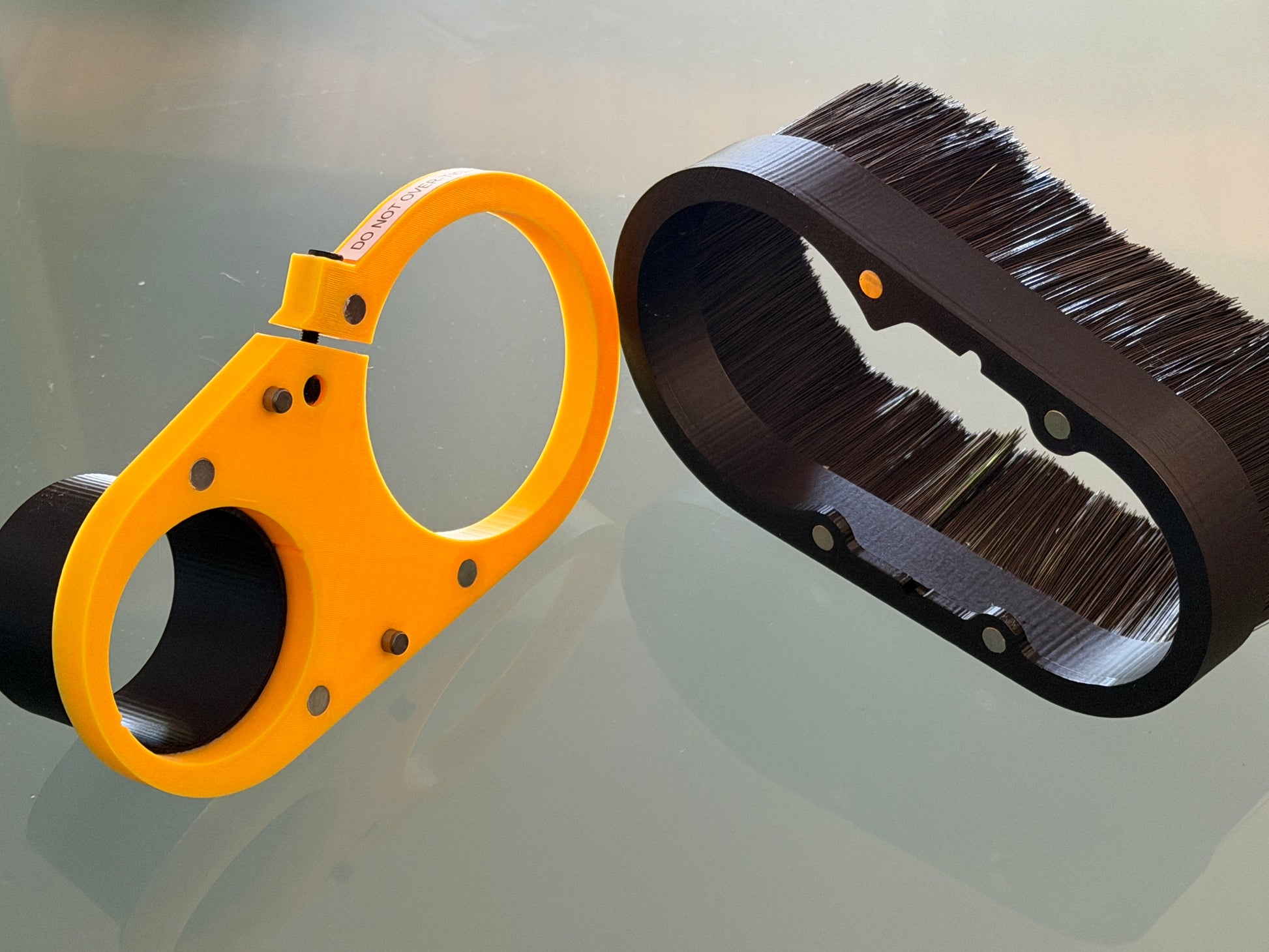

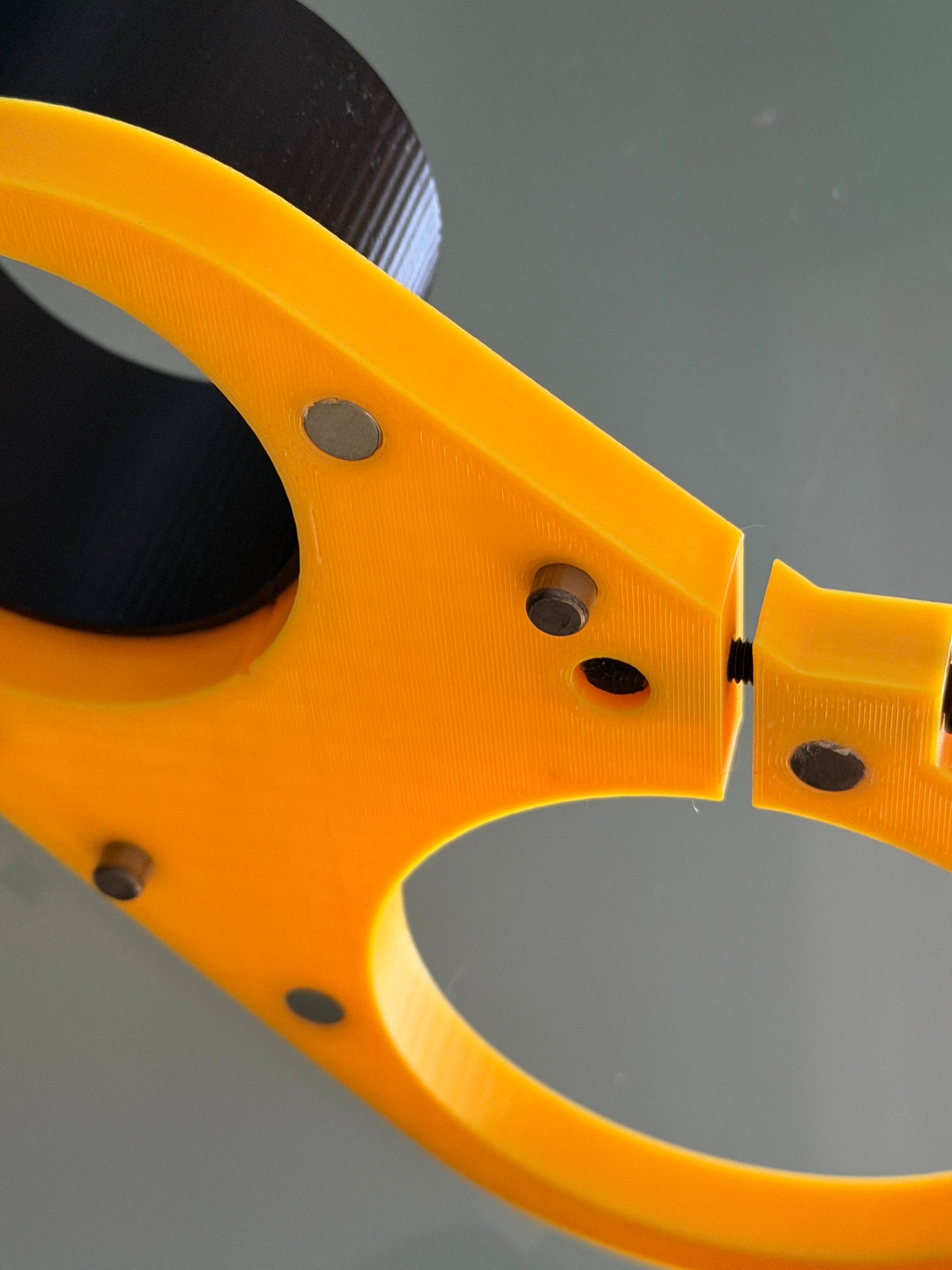

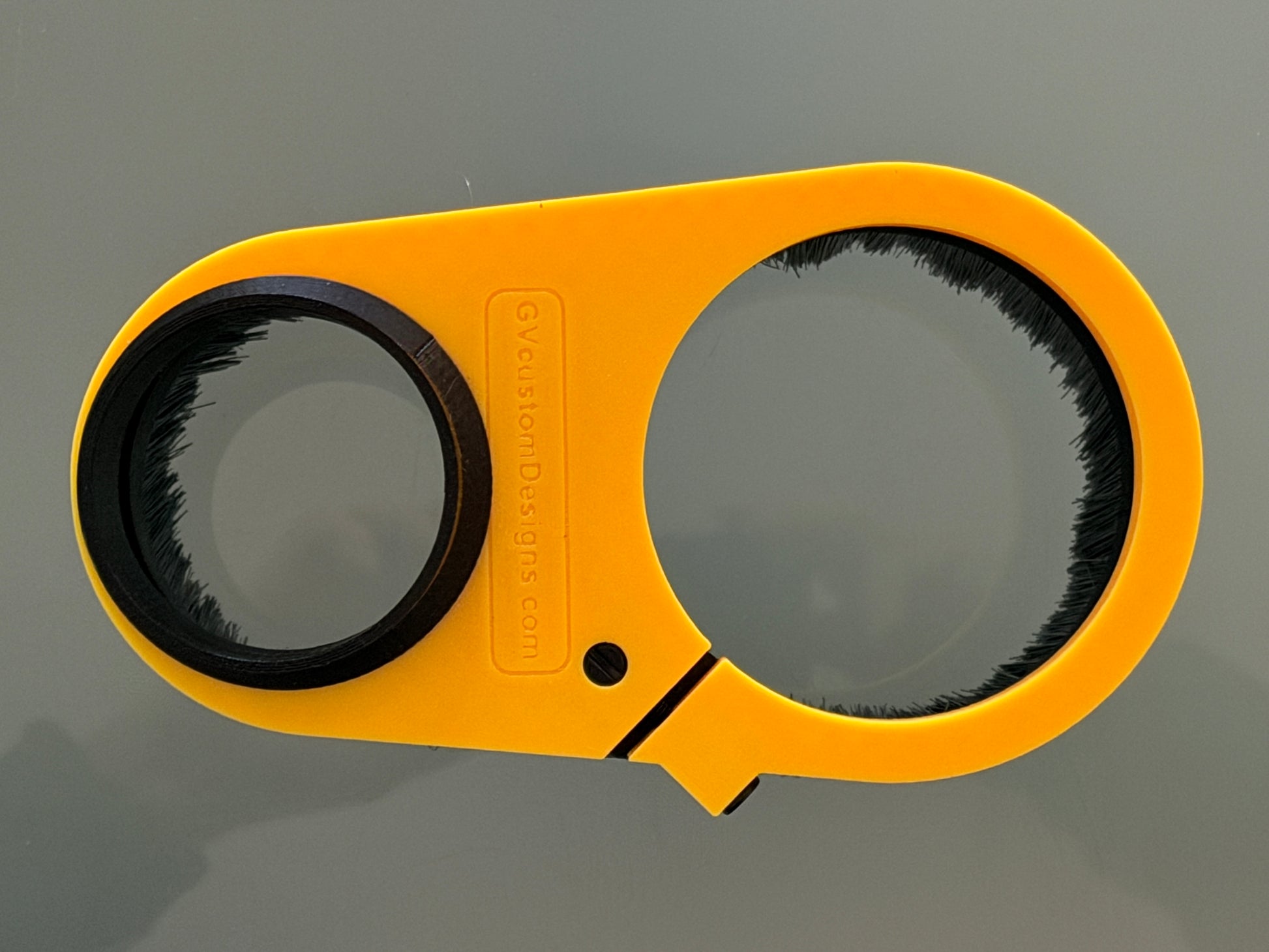

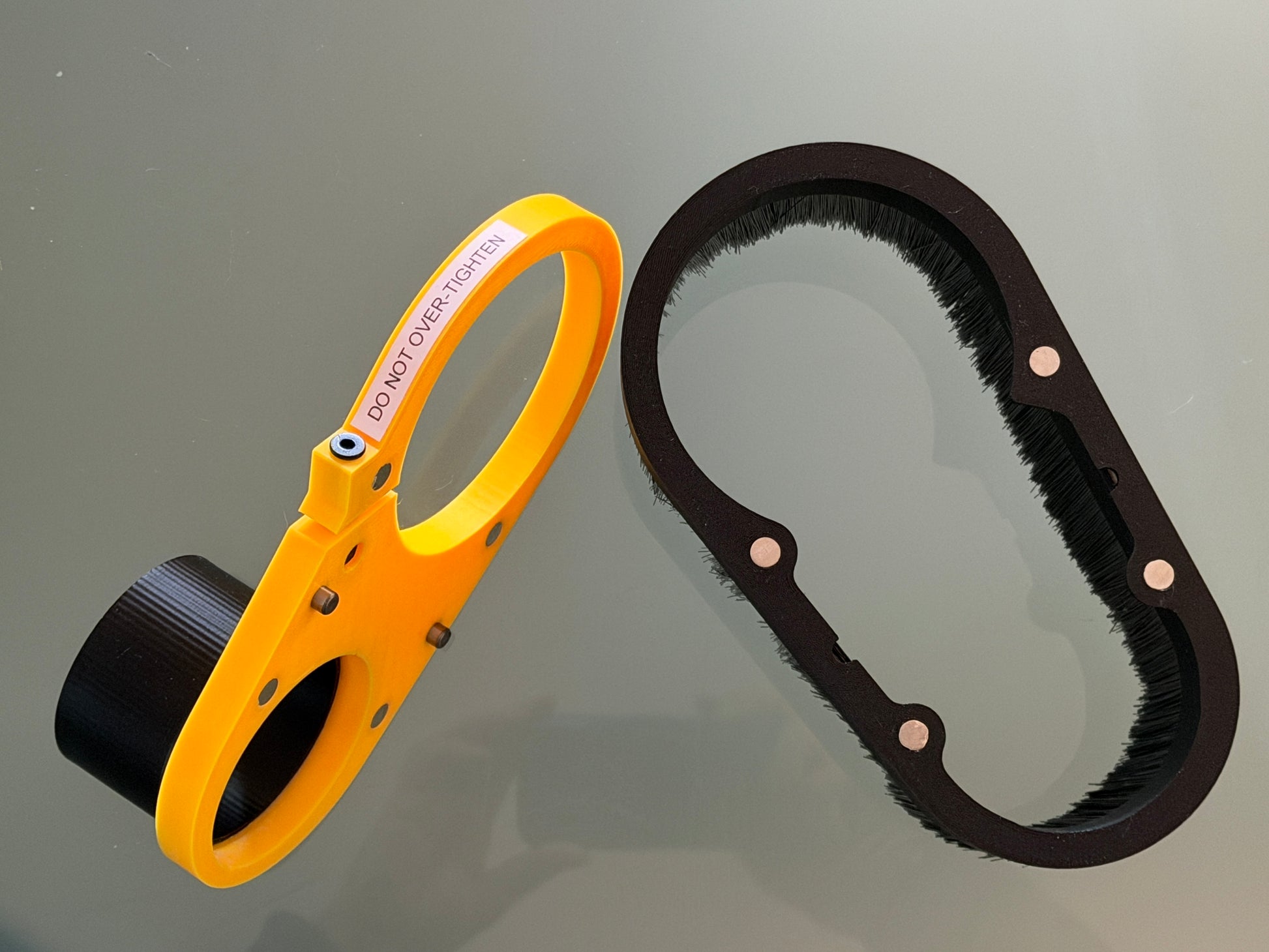

This dust boot system is precisely engineered to fit various CNC machines. Made with a 1/2" 3D printed top plate, it features a removable magnetic base that holds a brush . The magnetic base can be effortlessly taken off to allow for complete tool installation. It is designed to perfectly accommodate the selected router size and vacuum hose adapter. The distance from the bottom of the top plate to the tip of the brush measures 74mm.

Note: This dust boot will fit CNC machines that have 11-12mm space between the router body and back Z gantry.

This design is exclusively compatible with CNC machines equipped with routers. For CNC machines featuring spindles with extended collets, please refer to the Customizable Dust Boot Listing, which is detailed in the last photograph.

Router body diameters:
Makita - RT0701C - 65mm
Dewalt - 611 - 69mm
Dewalt - 618 - 3-1/2"
Bosch - Colt - 71mm
RoutER- - 65mm
Bora - PM-6200 - 4.2"
