Clear Dust Boot for Shapeoko, X-Carve, WorkBee, Axiom , Genmitsu, Next Wave , Laguna CNC-Router

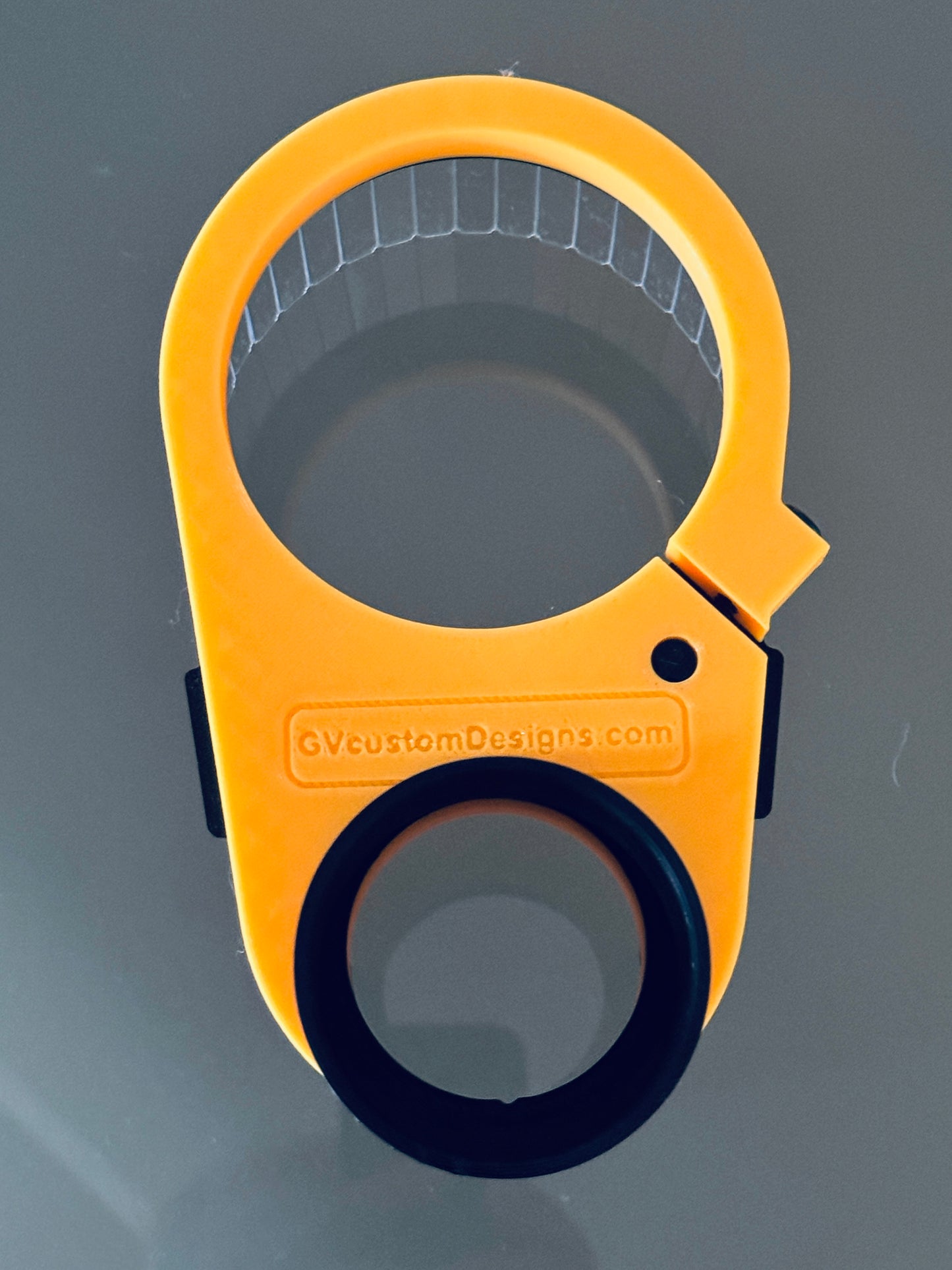

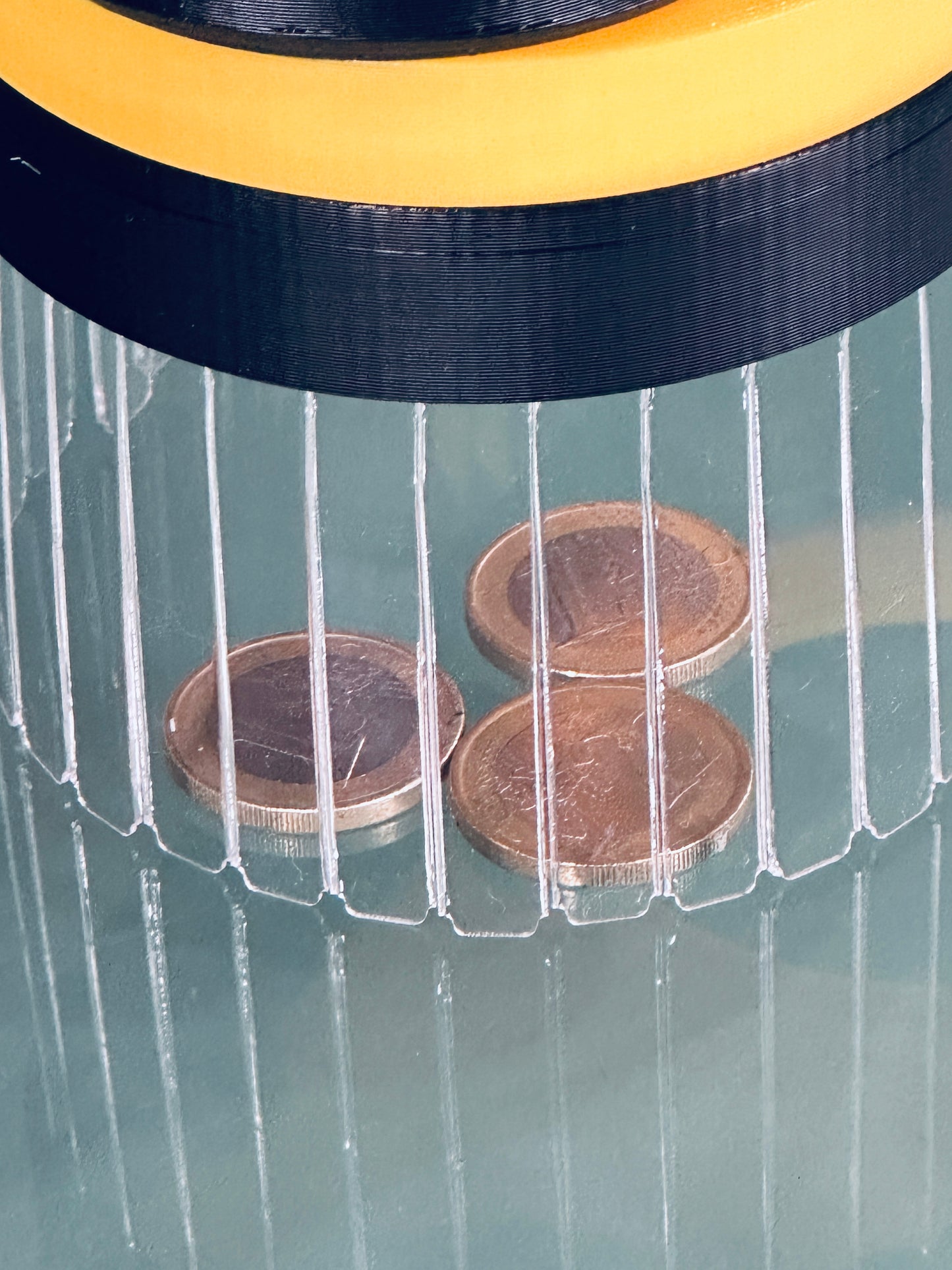

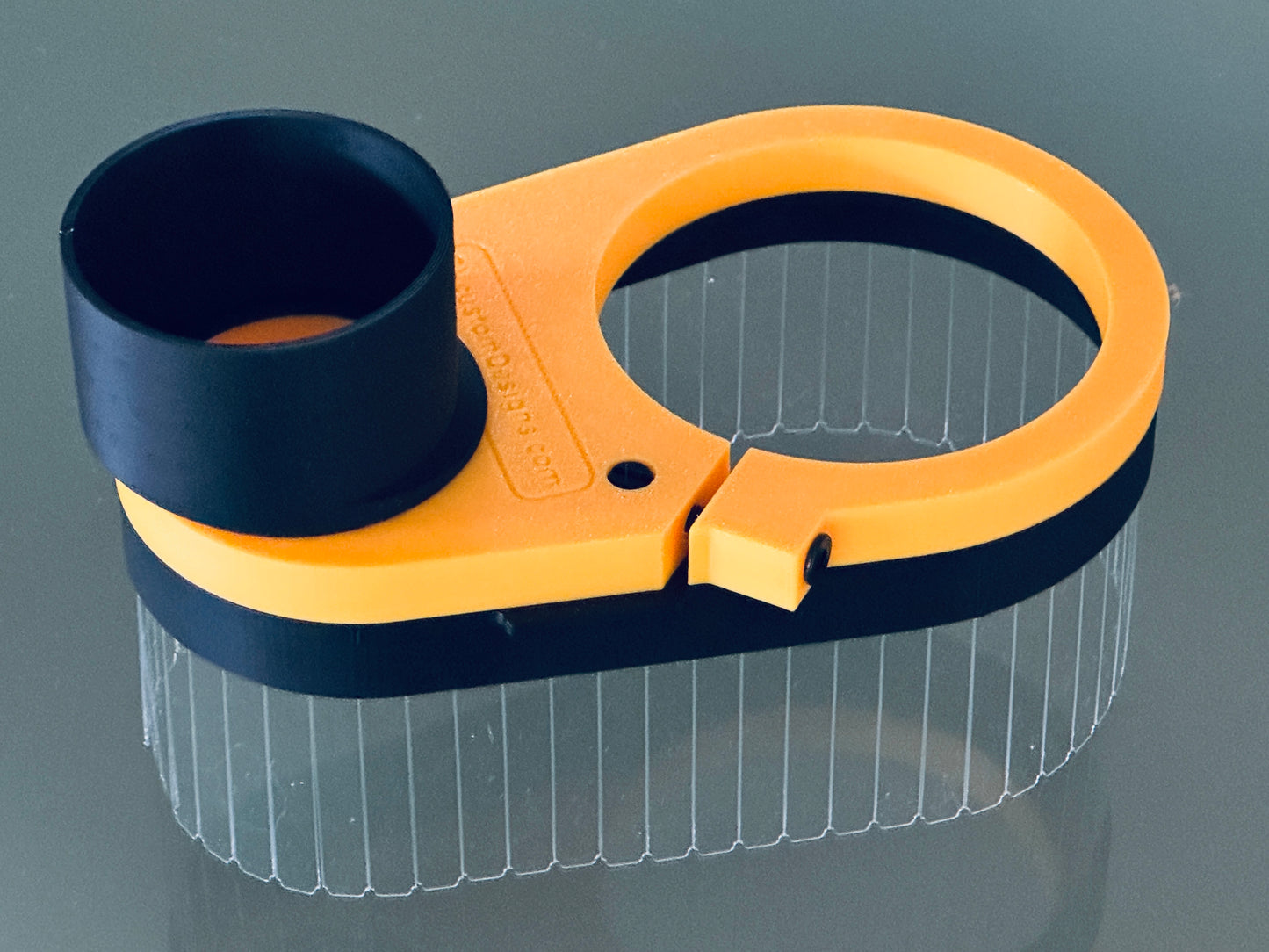

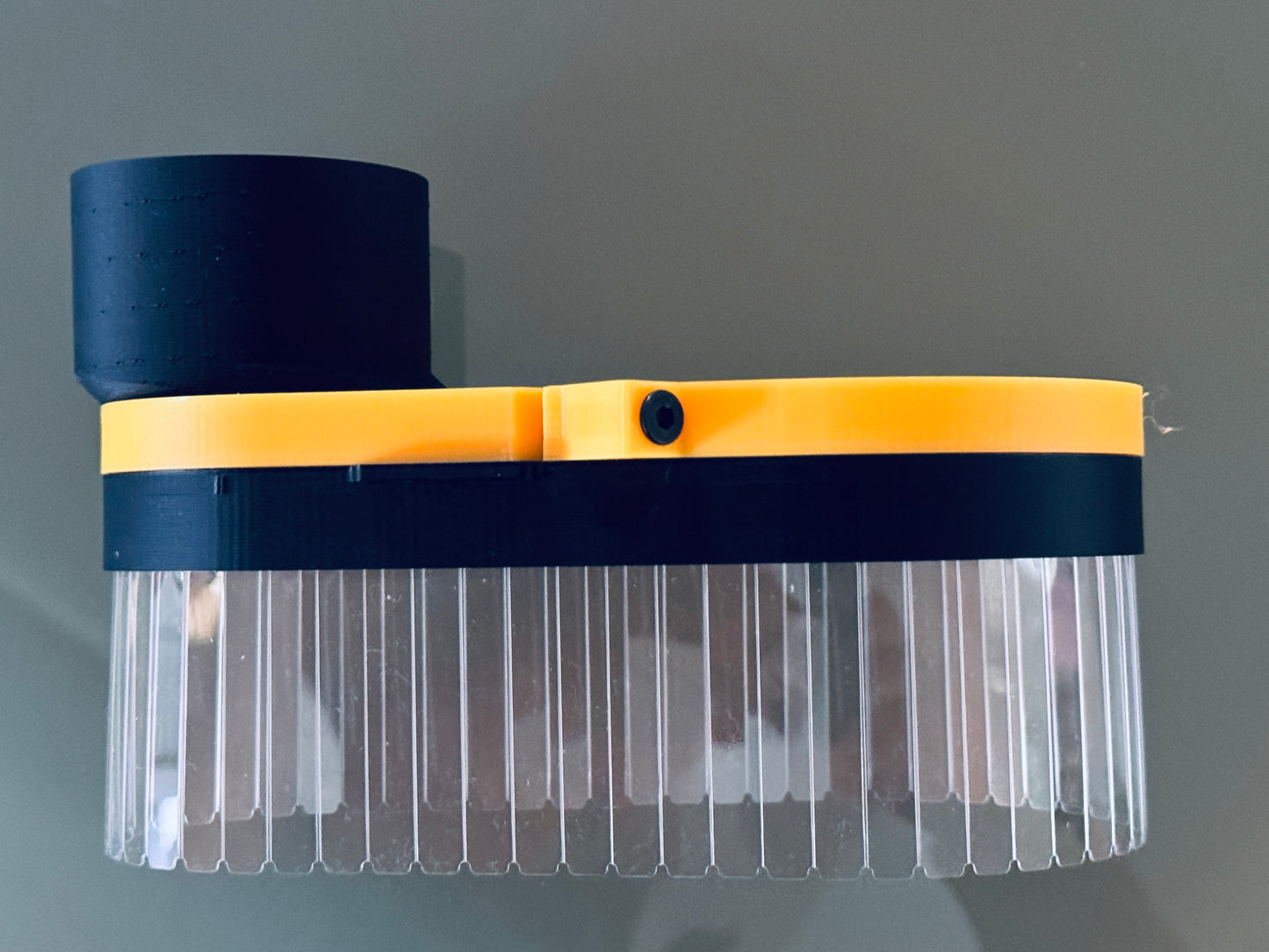

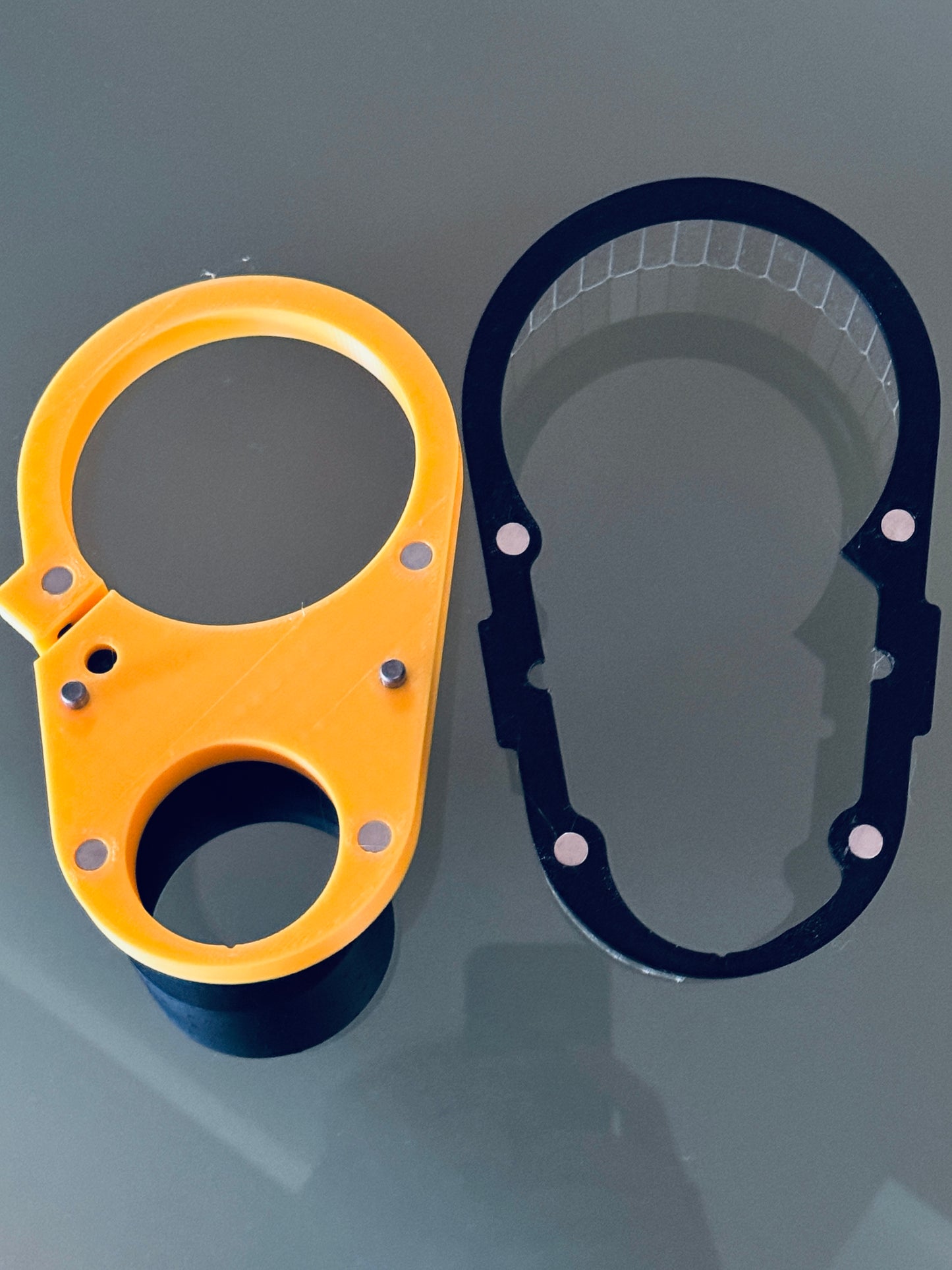

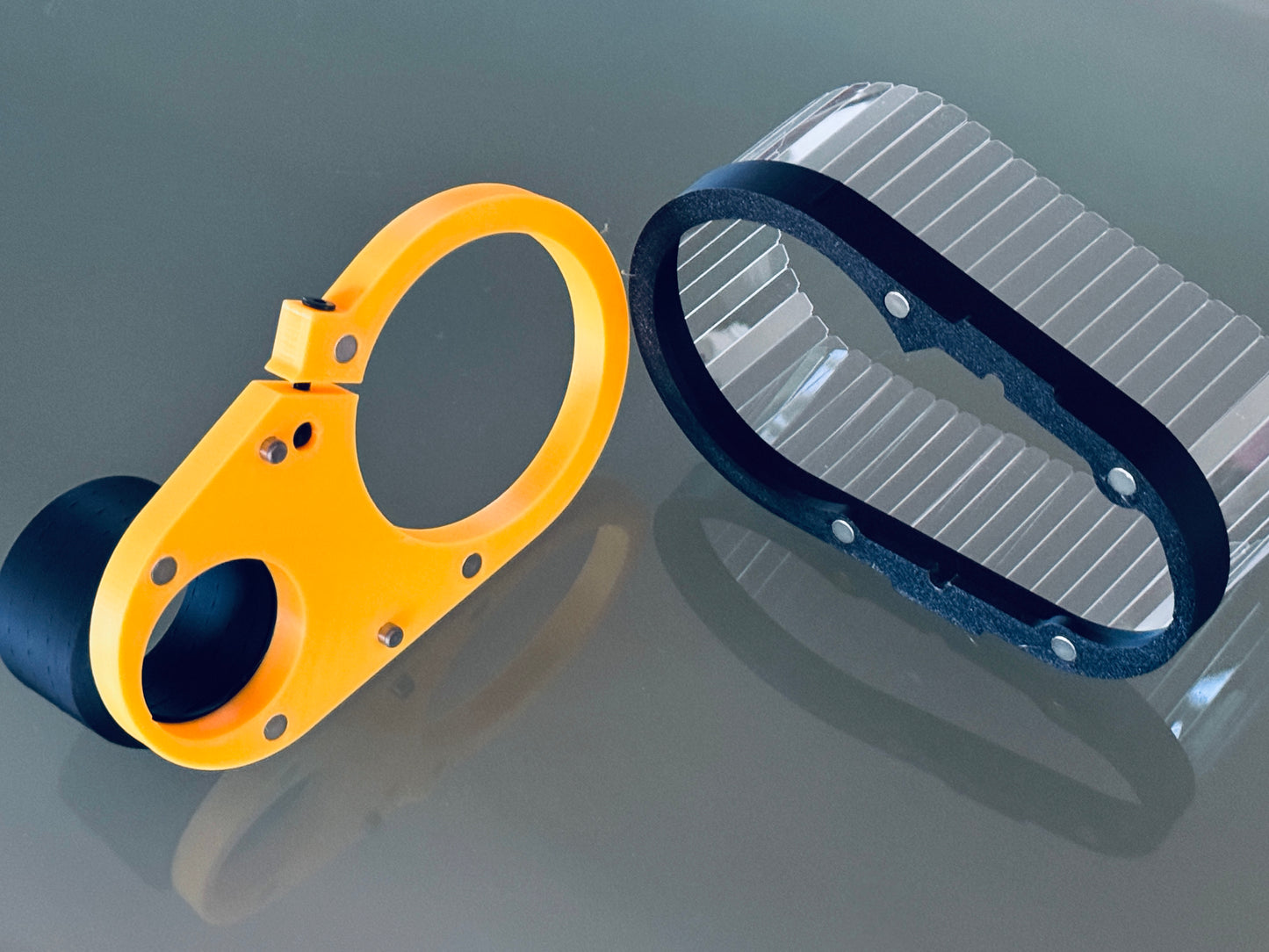

This dust boot system is specifically designed for CNC machines equipped with a router. The dust boot is constructed from a 1/2” 3D-printed top plate featuring a magnetic removable base that securely holds a transparent flexible screen. This screen provides visibility of the cutting or engraving tool’s operation. The magnetic base can be easily removed, enabling full access to the tool installation. The design accommodates the router size selected and vacuum hose adapter. The distance between the bottom of the top plate and the tips of the screen is 74mm.

Note: This dust boot is compatible with other CNC machines that have a minimum of 11-12mm clearance between the router body and the back Z gantry, and are equipped with a router.

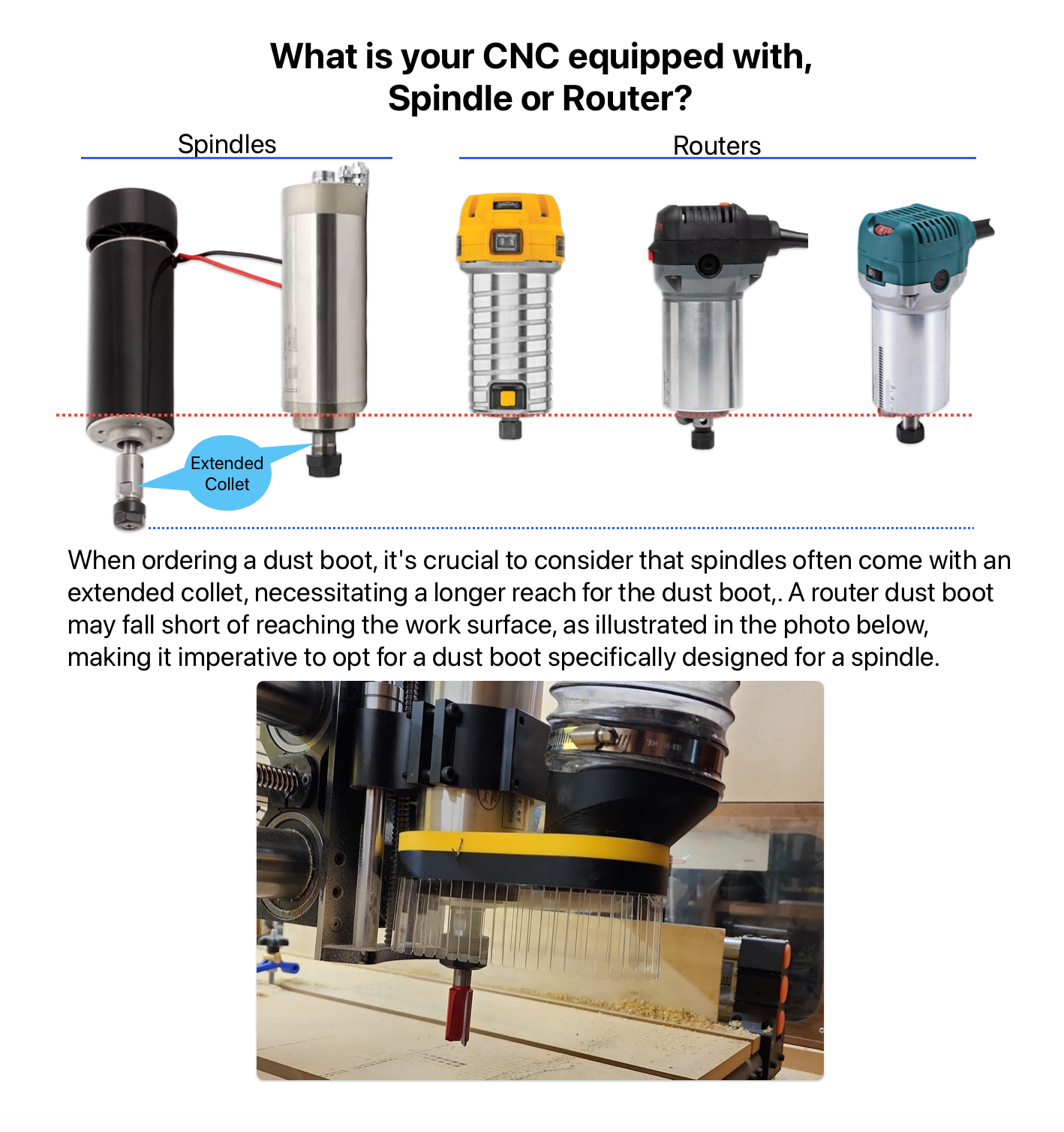

For CNC machines equipped with spindles featuring extended collets, please refer to the Customizable Dust Boot Listing. (See the final photograph for further details.)

Router body diameters:
Makita - RT0701C - 65mm
Dewalt - 611 - 69mm
Dewalt - 618 - 3-1/2"
Bosch - Colt - 71mm
RoutER- - 65mm
Bora - PM-6200 - 4.2"
